Water Bath Heater
Water Bath Heaters are designed to heat high pressure fluids and gas coming from the well or pipeline.Water bath heaters (water jacket furnace)used in oil and gas industry for heatingmedium of the pipeline to prepare for further technology needs. It also called indirect bath heater.
General Introduction
Water Bath Heater, also known as "oilfield heat treat" or "water jacket heater" is an efficient heating treater specifically designed for oilfield extraction and production processes. This product combines thermal oil heating with liquid treatment capabilities, aiming to provide reliable oilfield treatment solutions.
As an efficient and reliable oilfield heating and treating equipment, the heater treater is widely used in oilfield development, petroleum production, and transportation systems. It enhances operational efficiency, reduces energy consumption, and ensures the quality and stable supply of oil and gas.
Configuration
Equipped with advanced combustion technology, Our heating treater efficiently transfers heat oil to the equipment and pipelines requiring heating in the oilfield. It boasts powerful heating capacity and excellent temperature control, ensuring that the oil or gas maintains the desired temperature range during gathering, transportation, and storage processes.
Water Bath Heater

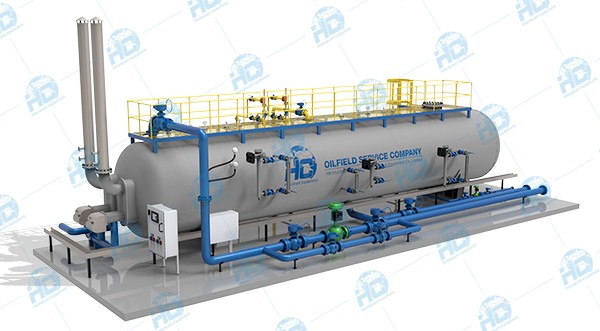

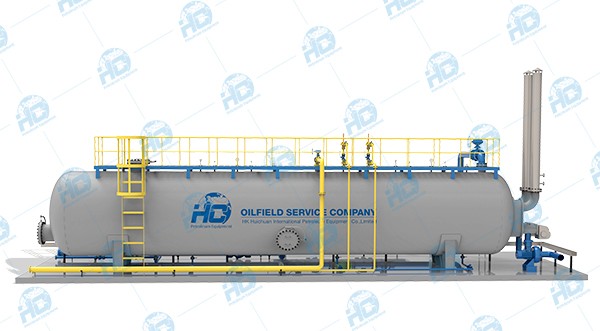

The configuration of the heater may differ depending on the process application. Usually, the heater consists of main body with coil tubes, burner, firetube and flue stack. Sometimes skid may consider an expansion tank.
The main body refers to the basic vessel into which the firetubes and process coils are inserted from opposite ends. The burner ignites the fuel gas or fuel oil and blow it into firetube to heat the water in the vessel, and the hot water heats the medium in the coils such as crude oil or raw natural gas. The process coils are “bathing” in the water, and that’s why it’s called a water bath heater.
The heater shell has two saddle types supports, which is cuboid form and mounted on skid or special-designed bases. Outlet temperature may vary, but usually don’t exceed 86-88 °C.
Application
Heating of well fluids coming from choke manifold to prevent freezing/waxing of crude.
Heating of raw natural gas before turbines.
Heating of sulfur gas in sulfur processing facilities.
Heating of chemicals to maintain proper temperature meeting process requirements.
Features
Sour medium
Heavy fouling medium
Salty medium
Specified kind of burner and fuel as per client requirements
Specified kind of control
Remote automation and control
Skid-mounted or trailer-mounted
Design Code & Standards
CE
PED
UL, Exp
NACE MR0175
API SPEC 12K
API 6A, API 6D
ASME Section VII, DIV 1
ANSI B31.3 Class M (H2S)
HC supplies three types of BMS for industrial heaters:
Simple mechanical site operated control panel. It does not require complex cabling, and expensive components, and easy to operate.
Control system with microprocessors. Control system with microprocessor provides additional digital control features and enable send and receive signals from remote control panel.
Third type is BMS with PLC and additional digital control and operating functions. BMS enables to connect unit with SCADA or main control system of facility. BMS with PLC has a lot of advantages over conventional BMS, but requires more cables, more electric protection, and expensive components.
As BMS is installed near the burner of heater, it shall be explosion proof and SIL-rated. HC Petroleum Equipment provides water bath heaters and other industrial indirect fired heaters with comprehensive and reliable BMS, meeting project requirements and client’s expectations both in price and quality.
As a leading provider of oilfield water jacket heaters, we are committed to delivering exceptional solutions for you.Our team possesses extensive experience and expertise, allowing us to provide customized solutions tailored to your needs and ensure your requirements are met.
