Two-phase separator
stock- Size : 72" * 10' / 72" * 15'
- Type : Horizontal
- Working/Design Pressure : Atmospheric pressure
Two-phase separator is also called gas-liquid separator. As its name suggests, it is used for separating gas and liquid in wet gas stream, or more generally the gas/liquid stream, when the complex liquid phase components are not required to be separated from each other. Since the stream conditions and required efficiency may vary widely, the Two-phase separator can be designed in many models and with different performances.
Product Introduction
| Product Size | Max. Operation Temperature |
Design Temperature | Medium | Medium Characteristics | Main Pressure Component | Volume | Inlet Size | Outlet Size | Liquid Handling Capacity | Gas Handling Capacity |
| 72" * 10' | 38 ℃ | 100 ℃ | Water & Oil | Non-toxic & non-explosive | Q235B | 8.92 m³ | 114.3*6.4 grooving | 114.3*6.4 grooving | 8920 bpd | 26.76 MMSCFD |
| 72" * 15' | 38 ℃ | 100 ℃ | Water & Oil | Non-toxic & non-explosive | Q235B | 12.7 m³ | 114.3*6.4 grooving | 114.3*6.4 grooving | 8920 bpd | 26.75 MMSCFD |

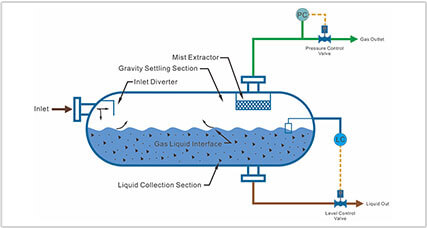

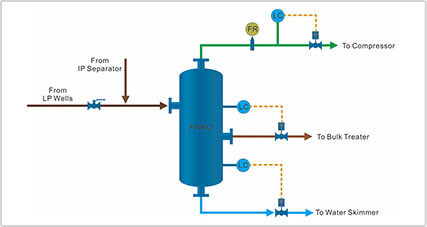

Working Process

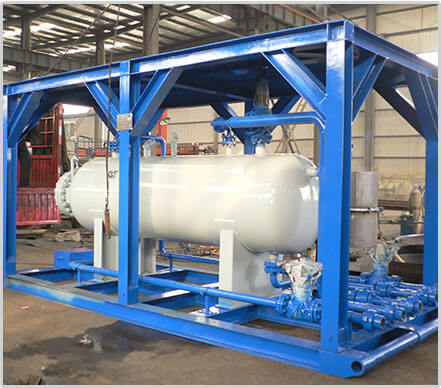

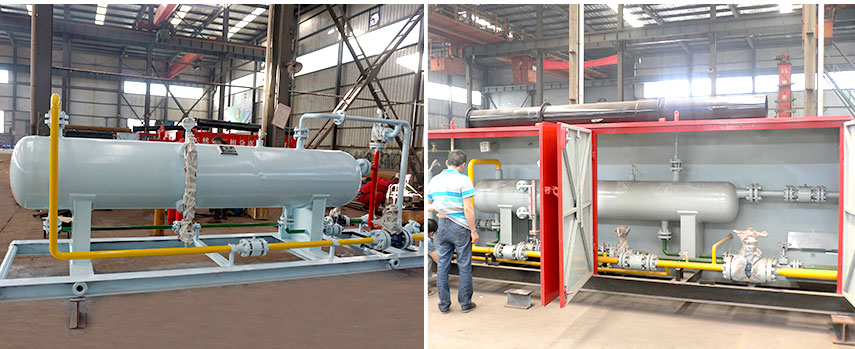

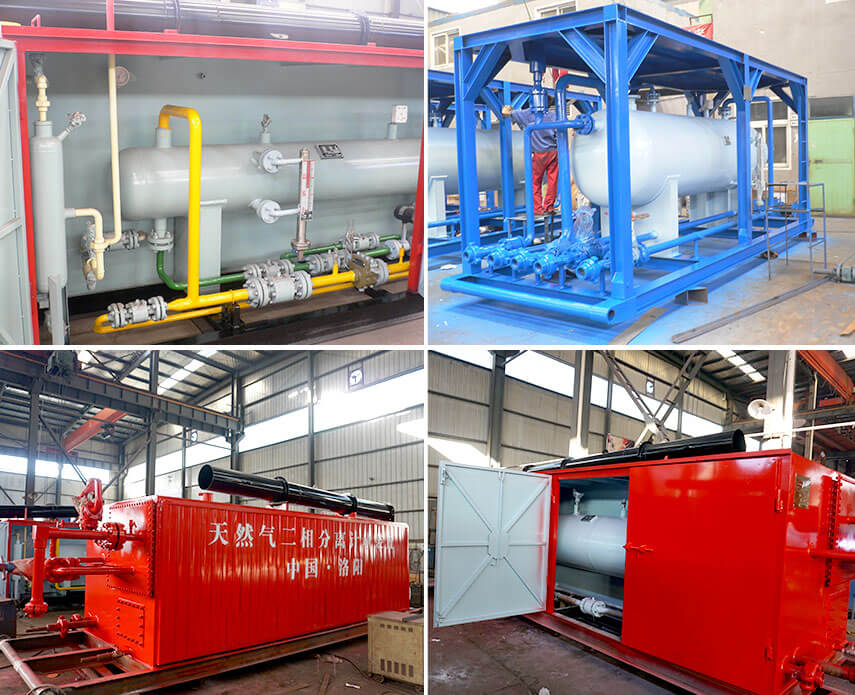

Product Photos
